Circular, Square and Rectangular

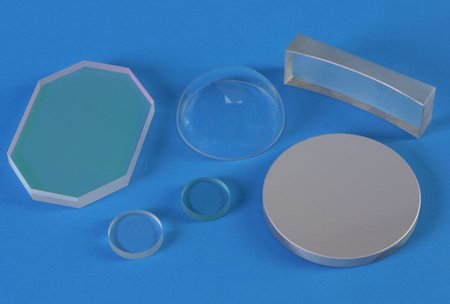

Custom circular and square windows

Windows are used to isolate different physical environments while allowing light to pass. The selection of a window should consider the properties of the different optical materials, transmission, wavelength range, and resistance to the environment. Tower offers a wide range of different materials and a variety of anti-reflecting coatings that can be deposited on the windows.

Tower Optical manufactures windows from BK7, UV Grade Fused Silica and Sapphire. Other materials are available on a custom basis. In addition, we offer three different quality standards as described below. Contact factory for info on Sapphire Windows.

Didn’t See What You Need Please Click Here

Specification Standard Grade High Grade Laser Grade High Grade
Material BK7 grade A BK7 grade A UV Fused Silica Sapphire
Dimensional Tolerance +0.0/-0.1mm +0.0/-0.1mm +0.0/-0.1mm ±0.1mm
Flatness
(TWF)
λ/2 @ 632.8nm λ/10 @ 632.8nm λ/10 @ 632.8nm λ/4 per 25.4mm
Surface Quality
Scratch/Dig
40/20 20/10 20/10 40/20
Thickness Tolerance ±0.2mm ±0.2mm ±0.2mm ±0.1mm
Parallelism < 1 arc minute < 10 arc seconds < 10 arc seconds < 30 arc seconds
Bevel 0.2mm x 45° 0.2mm x 45° 0.2mm x 45°



BK7 Grade A Optical Glass, Stadard WB11 and High WB12
Model No Dia mm Thick Price Model No Dia mm Thick Price
WB11-005 5.0 2.0 12 WB12-005 5.0 2.0 31
WB11-010 10.0 2.0 18 WB12-010 10.0 2.0 39
WB11-012 12.5 2.0 19 WB12-012 12.5 6.0 40
WB11-020 20.0 2.0 21 WB12-020 20.0 6.0 52
WB11-025 25.0 2.0 25 WB12-025 25.0 6.0 62
WB11-038 38.0 4.0 29 WB12-038 38.0 10.0 84
WB11-050 50.0 4.0 39 WB12-050 50.0 10.0 151



UV Grade Fused Silica, High WB22
Model No Dia mm Thick Price
WF22-005 5.0 2.0 39
WF22-010 10.0 2.0 45
WF22-012 12.5 6.0 52
WF22-020 20.0 6.0 64
WF22-025 25.0 6.0 78
WF22-038 38.0 10.0 130
WF22-050 50.0 10.0 315



We make custom versions of everything on this site. Send us your drawings or specifications and we will provide a quotation.
